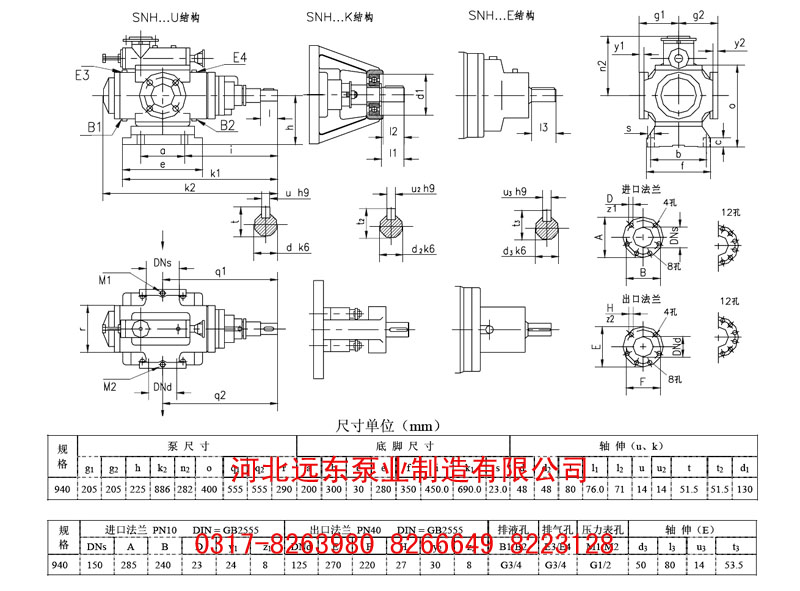

 SNH940U12.1W21三螺桿泵泵頭安裝尺寸圖
|
|
|
|
|
SNH940U12.1W21三螺桿泵簡介工作原理:SN三螺桿泵是無脈動軸向輸送具有一定潤滑性介質的定量容積式低壓轉子泵，適于輸送燃料油、潤滑油、液壓油、礦物油等油類和具有潤滑性的流動性液體。
所輸送的介質中不得含有任何磨料顆粒和對泵材料有腐蝕的物質。
SNH940U12. 1 introduction of w21 three screw pump working principle: SN three
screw pump is a pulsating axial transmission has a certain quantitative displacement
of lubricity medium low pressure rotor pump, suitable for conveying fuel oil,
lubricating oil, hydraulic oil, mineral oil, such as oil and has the lubricity
of liquid liquid. The conveying medium shall not contain any abrasive particles
and the pump material material corrosion.
SNH940U12.1W21三螺桿泵: 由特殊型線（擺線）構成的螺旋型面，當電機或馬達驅動主動螺桿轉動時，其不斷運動的各個密封腔室逐漸形成真空，液體在大氣壓的作用下由吸入口吸入并沿軸向連續、無脈動的輸送到排出口，無攪拌、乳化現象。形成排出壓力的能力取決于系統負載和螺桿密封腔的數量，同時也與輸送介質的粘度以及驅動轉速也有一定的關系。
SNH940U12. 1 w21 three screw pump: made of special type line (cycloid) spiral
surface, when the motor or motor drive screw rotates, the constant motion of
the sealing chamber gradually formed a vacuum, the liquid under the action of
atmospheric pressure by suction suction along the axial continuous, pulseless
to discharge, without stirring, emulsifying phenomenon.Form the exhaust pressure
depends on the ability of system load and the number of screw seal cavity, at
the same time, also with the medium viscosity and driving speed also have certain
relations.
特點 SN三螺桿泵 1.轉子液壓平衡，振動小，噪音低。 2.輸出穩定，無脈動。 3.高效率。 4.具有很強的自吸能力。
5.零部件采用通用性強的系列化設計，具有多種安裝方式。 6.結構緊湊，體積小，重量輕，可在較高轉速下工作 輸送介質種類 a.潤滑性液體：如機械油，滑油，重油，渣油
b.低潤滑性液體：如輕柴油，重柴油，含蠟稀油 c.粘性液體：如各種合成橡膠液和人造膠液，乳化液 Characteristics of SN three screw
pump (1) the rotor hydraulic balance, little vibration, low noise.2. The output
is stable, no pulsation.3. High efficiency.4. Has a strong self-priming capacity.5.
Parts versatility of seriation design, with a variety of installation.6. Compact
structure, small volume, light weight, can work under high speed transmission
medium type a. lubricity liquid, such as machine oil, lubricating oil, heavy
oil, residual oil b. low lubricity liquid: such as light diesel oil, heavy diesel
oil, wax containing thin oil c. viscous liquid, such as various kinds of synthetic
rubber and synthetic rubber, emulsion
